Nasa Artemis Ii Heat Shield Raises a Bigger Question After a Clean Return
The nasa artemis ii heat shield did not produce the kind of alarm that once surrounded Artemis I. Instead, initial inspections after splashdown on April 10 found the system performed as expected, with no unusual conditions identified. That is the reassuring part. The sharper question is why NASA is still sending the shield for deeper scans, even after a return that matched the plan.
What did NASA find in the first inspections?
Verified fact: Orion completed a 694, 481-mile journey around the Moon and back, then reentered Earth’s atmosphere and splashed down off the coast of San Diego at nearly 35 times the speed of sound. NASA says diver imagery and further checks on the recovery ship showed the char loss seen on Artemis I was significantly reduced, both in quantity and size. The agency also says performance was consistent with arc jet facility ground testing completed after Artemis I.
Analysis: That matters because the Artemis II result did not come from a redesigned shield. NASA changed the reentry trajectory instead and dropped the skip maneuver that had drawn criticism after Artemis I. The choice avoided a full hardware redesign, but it also meant the mission became a test of whether a procedural fix could stand in for a structural one. On the available evidence, the early answer is yes.

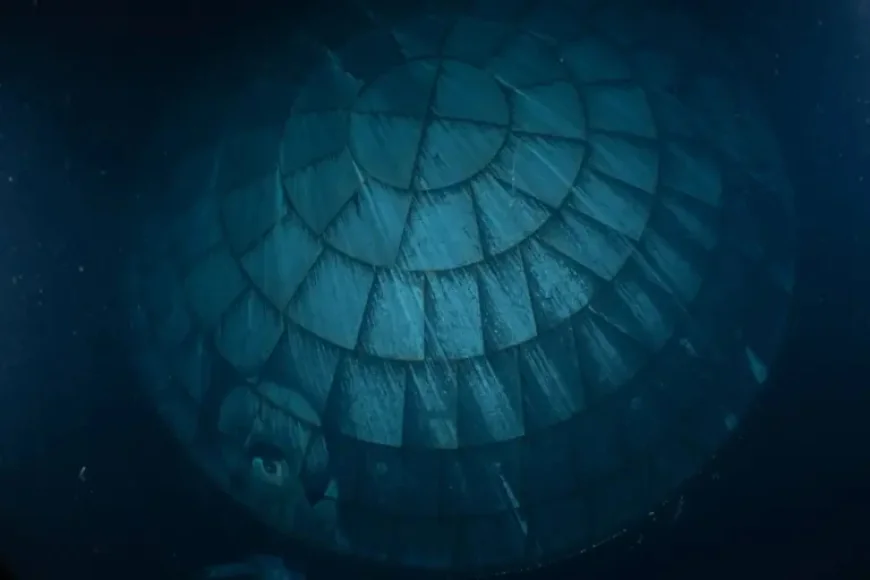

The nasa artemis ii heat shield is still not a closed case. NASA plans to move it to the Marshall Space Flight Center in Huntsville, Alabama, for sample extraction and internal x-ray scans over the summer. That next step is important because the agency wants to verify how the material behaved during reentry, not simply whether it survived it.
Why does the heat shield story still matter after a successful splashdown?
Verified fact: The Artemis I capsule, which returned in 2022, showed unexpected cracks and charring. NASA concluded the problem was linked to gas trapped within the coating and to the reentry technique used on that mission. The Artemis II flight used a different trajectory, and Orion splashed down 2. 9 miles from the targeted landing site, while entry interface velocity was within one mile-per-hour of predictions.
Analysis: Those details point to a broader operational question: whether NASA has now isolated the risk well enough to move ahead, or whether the system only appears stable because the mission profile was altered. The initial inspection results favor the agency’s approach, but the deeper lab work will determine whether the reduced char loss is a durable outcome or simply the result of a more forgiving path home.
The nasa artemis ii heat shield also sits inside a wider system check. NASA says the ceramic tiles on the upper conical backshell performed as expected, and reflective thermal tape remained in numerous locations even though it is expected to burn off during reentry. Airborne imagery from the crew module is still under review, and NASA says that will help identify the timing of minimal char loss and other heat shield data.
Who gains from the current assessment, and what remains unresolved?
Verified fact: NASA says the rest of the Artemis and SLS systems performed well on initial inspection. The agency also says there was significantly less damage to ground systems during launch, reducing the chance that current findings will disrupt processing for the Artemis III mission in 2027. NASA is also examining hardware tied to a urine vent line issue from Artemis II and intends to identify a root cause and corrective action for Artemis III.
Analysis: The immediate beneficiaries are mission planners who need evidence that the program can keep moving. A successful heat shield review supports the case for the next mission and reduces pressure to revisit the trajectory decision. But the unresolved parts are just as important: the forthcoming scans, the airborne imagery review, and the separate hardware investigation show that NASA is still building the case, not finishing it.
For now, the strongest public takeaway is narrow but meaningful. Artemis II appears to have validated the revised reentry approach, yet NASA is still treating the nasa artemis ii heat shield as an object of proof rather than a finished answer. That is the right standard if the agency wants confidence, not just relief. The public should expect the remaining examinations to be released clearly and in full, because a clean splashdown is not the same thing as a complete reckoning with what the heat shield has truly proven.
