Discover How Crash Test Dummies Are Designed and Function
Crash test dummies play a crucial role in automotive safety testing, simulating human bodies during collision assessments. The design and function of these dummies are meticulously engineered to gather accurate safety data. At Humanetics, a leading producer located in Huron, Ohio, the manufacturing process for these essential devices begins with their physical parts.
Design Process of Crash Test Dummies

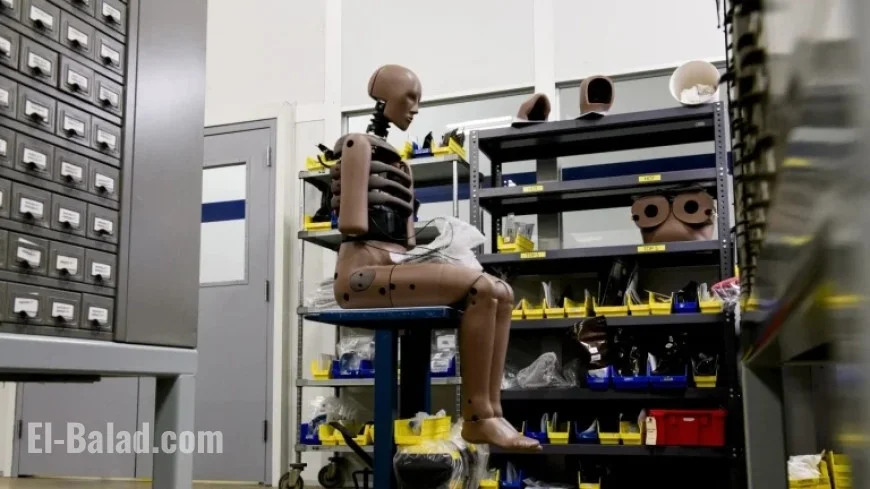

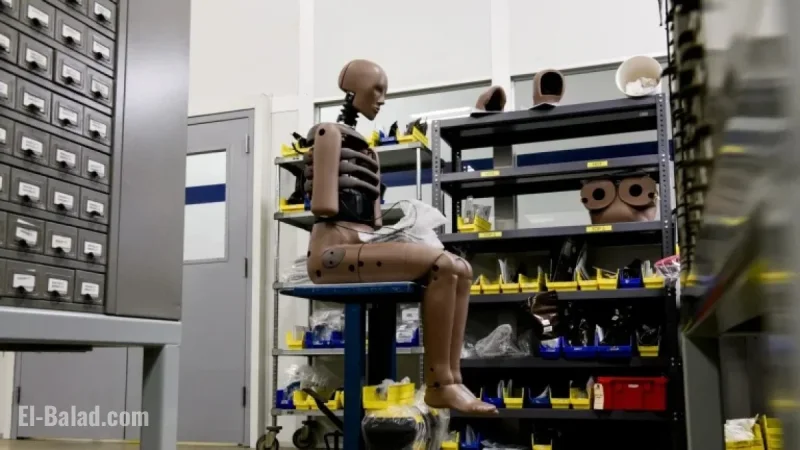

Jonathan Keck, the manufacturing engineering manager at Humanetics, emphasizes the importance of creating dummies that are human-like in function. While the appearance of dummies has evolved over time, their primary goal is to move and respond like human bodies during a crash. This functionality relies on comprehensive data gathered from human anatomy studies, including information from female bodies for the latest female dummy designs.
Materials and Manufacturing
The crash test dummies are crafted using a combination of materials. The skeleton is made from precisely engineered metals, while the outer layers consist of:
- Polyurethane for varied flexibility and firmness
- Vinyl molded to simulate skin texture
- Foam to provide cushioning
The manufacturing process involves skilled craftspeople who use various tools, from hand tools to computer-controlled devices, to create these sophisticated models. After assembling the bones, the dummies’ bodies are formed and smoothed with techniques that include sanding to create a lifelike appearance.
Embedding Sensory Technology
Once the physical parts are assembled, the dummies are transported to a facility in Farmington, Michigan. Here, technicians install an array of sensors designed to measure critical data points like acceleration and force. This data collection is vital for understanding how these dummies respond during simulated crashes.
Testing and Calibration
Calibration is a key phase, where dummies undergo precision tests to ensure sensors are functioning correctly. Various methods, including dropping heads from specific heights and compressing parts, validate that each dummy accurately reports data under crash conditions.
The Importance of Real-World Testing
Crash test dummies vary in cost, ranging from hundreds of thousands to over a million dollars for advanced models. These devices are integral for automotive manufacturers and organizations like the Insurance Institute for Highway Safety (IIHS) that rely on them for crash testing.
Real-World Testing Scenarios
During testing, dummies are placed in vehicles and subjected to high-speed collisions. For example, at the IIHS test site in Virginia, vehicles equipped with test dummies are propelled into barriers to evaluate safety features. The paint applied to dummy faces helps identify impact points, offering clear insights into the crash dynamics.
These tests contribute to a wealth of data that not only aids in vehicle safety improvements but also assists in developing virtual simulations for broader testing scenarios. While automation and simulations are on the rise, physical crash tests remain vital for accurate safety ratings.
As automotive technology progresses, crash test dummies will continue to evolve, ensuring they meet the demands of modern safety testing. Their intricate design and function serve as pivotal components in reducing injuries and improving vehicle safety standards.
